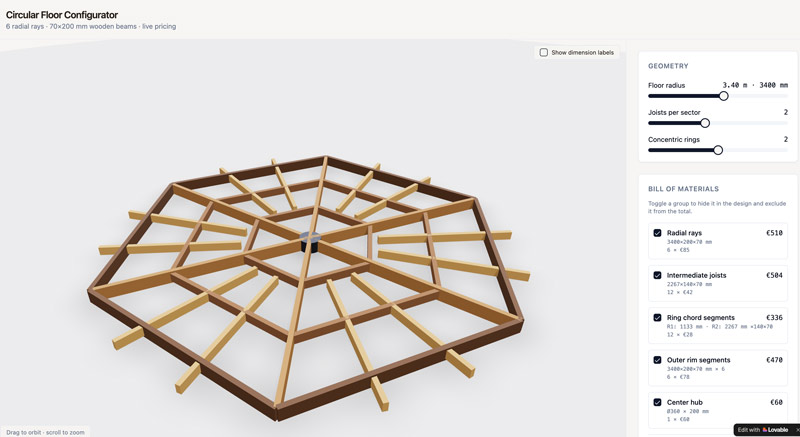

in this new configurator I focus on instant project cost calculation. I need to say I see strong progress in AI’s ability to deliver good interface. In this case, the vertically divided layout was almost perfect , I just had to ask for fex additionnal corrections , like adding resize handle for side bar and reduce / expand buttons. Those were added in no more than 3 prompts without breaking the app, which was often the case 6 months ago.
on top of initial model configurator I have added a few features
Cost calculation
- project units and prices configuration
- price configuration per section
- project saving
- encode project to json then hash, and add reopening via url get query, display link in project detail (bookmark icon next to “billf of material”)
exemple :
- encode project to json then hash, and add reopening via url get query, display link in project detail (bookmark icon next to “billf of material”)
- [in progress] cost optimisation of wood buying (cost calculation for each length of wood beams slightly varies and can lead to cost optimisation)
Prototype design
- a to b measure tool
- hover part to show part dimension
links
- github source : https://github.com/breizhwave/sunbeam-configurator
- demo : https://wood-circular-floor-builder.lovable.app/
stack
- IA developement : lovable
- front : tailwind with radixui
- 3D : react three fiber
